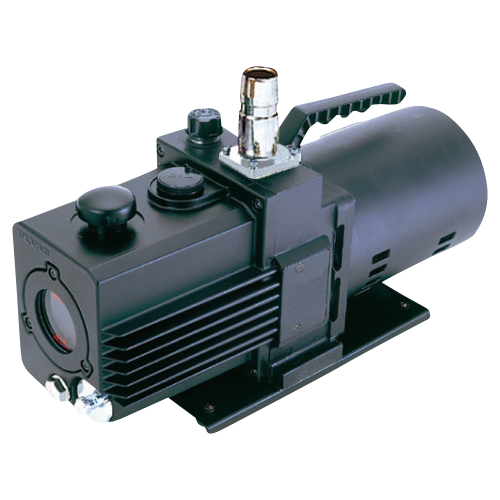

Vacuum Pumps, Compact (PD-53)

Vacuum Pumps, Compact (PD-53)

Vacuum Pumps, Compact (PD-53)

Vacuum Pumps, Compact (PQ-100)Vacuum Pumps, Compact (PD-139)
Category:
  Contact Us

Description

Small Oil Rotary Vacuum Pump Standard Available for Various Applications

Features of Vacuum Pumps, Compact (PD-53)

Built-in thermal protector
Built-in thermal protector, continuous operation is safe.
Oil backflow prevention valve
It is with an oil check valve.

Additional information

Model

PD-53
Item Code

242290
Effective pumping speed (50 Hz)

50l/min
Effective pumping speed (60 Hz)

60l/min
Ultimate pressure

6.7×10−2 Pa
Oil amount

650mL
Oil type

SMR-100
Intake pipe diameter

Outer diameter 18 × inner diameter 14 mm
Operating Ambient temperature range

7 to 40℃
External dimensions（W×D×H mm）

166×395×247mm
Power Source

AC115V
/220V Single phase with step-down transformer
Weight

13.9kg
