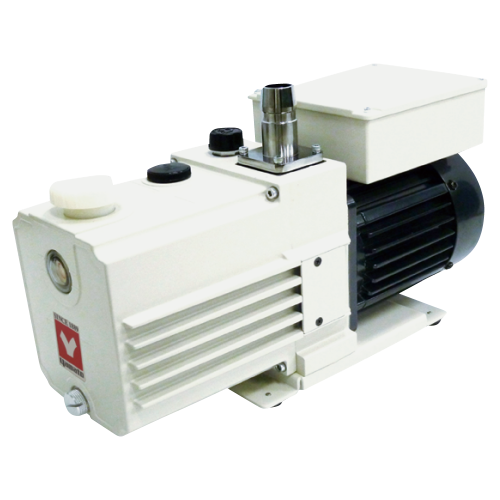

Vacuum Pumps, Compact (PQ-100)

Vacuum Pumps, Compact (PQ-100)

Vacuum Pumps, Compact (PQ-100)

Vacuum Pumps, Compact (PQ-30)Vacuum Pumps, Compact (PD-53)
Category:
  Contact Us

Description

Compact and light weight thanks to direct connection to the motor.

Features of Vacuum Pumps, Compact (PQ-100)

Features
Safe for continued operation with the integrated thermal protector.
Features
Easy to transport. Also ideal for embedding into a unit.
Features
Magnet coupling for no oil leakage from shaft seal and realized longer lifetime. Integrated check valve below the inlet port for backflow prevention. (PQ30/100)

Additional information

Model

PQ-100
Item Code

242222
Oil amount (mL)

1000mL
Oil type

R-2
Effective exhaust speed (50 Hz)

100l/min
Effective exhaust speed (60 Hz)

120l/min
Attainable vacuum (Pa)

6.7×10−2 Pa
Motor

単相,100V,300W,2P
Suction pipe diameter (mm)

O.D.27×I.D.20
Operating atmospheric temp. range (deg.C)

7 to 40℃
External dimensions（W×D×H mm）

150×413×235mm
Power Source

115/220V
Single phrase with step down transformer
Weight

22kg
