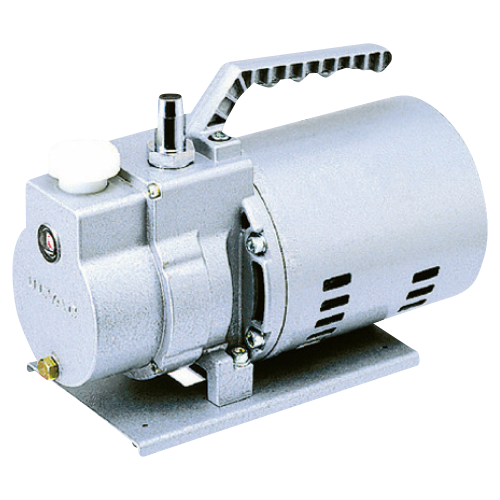

Vacuum Pumps, Compact (PS23)

Vacuum Pumps, Compact (PS23)

Vacuum Pumps, Compact (PS23)

Vacuum Pumps, Compact (PX-137)Vacuum Pumps, Compact (PQ-100)
Category:
  Contact Us

Description

Compact and light weight thanks to direct connection to the motor.

Features of Vacuum Pumps, Compact (PS23)

Features
Integrated check valve below the inlet port and pump internal atmospheric release mechanism for backflow prevention.
Features
Magnet coupling produces low noise and results to longer lifetime of shaft seal.

Additional information

Model

PS23
Item Code

242289
Oil amount (mL)

230mL
Oil type

SMR-100
Effective exhaust speed (50 Hz)

20l/min
Effective exhaust speed (60 Hz)

24l/min
Attainable vacuum (Pa)

9.3×10−2 Pa
Motor

Single phase,100V,100W,4P
Suction pipe diameter (mm)

O.D.18 x I.D. 14
Operating atmospheric temp. range (deg.C)

7 to 40℃
External dimensions（W×D×H mm）

156×288×199.5mm
Power Source

AC115V / 220VV
Single phrase with step down transformer
Weight

8.5kg
