Description

Benchtop constant low temp. water bath that ensures wider temp. range and sufficient water bath space.

Features of Water Bath (Low Constant Temp.) (BBL101)

Benchtop constant low temp. water bath
Precise control with temp. control accuracy ±0.1°C.
Features
Expand the usages of water bath, ensure the effective space in chamber.
Features
Have external circulation function.
Features
Easily operate the water valve to switch internal and external circulations.
Features
The shelf plates’ height can be adjusted for 2 sections, available for small vessle.
Features
Base on auto stop and auto start operations, auxiliary with RS485 communication function, temp. output terminal (4~20mA).
Safety
Overcurrent ELB, self-diagnosis, refrigerator pressure detection, float switch preventing pump idling, refrigerator overload protector relay, refrigerator delay timer of protection, etc..

Additional information

Model

BBL101
Item Code

221379
Weight

50kg
Operating temperature range

Pump circulation cooling / external closed circulation
Temperature control accuracy

-10~+80°C (at room temperature 20°C)
Temperature distribution accuracy

±0.1°C
Temperature indicating unit

±0.3°C
Cooling capacity

Approx. 370W (320Kcal/h), at fluid temp.15°C
Temperature control

PID control
Operation function

Fixed temp., auto stop , auto start operations
Temperature sensor

Temp. controller: Pt thermal resistance, Overheat protection: K thermocouple

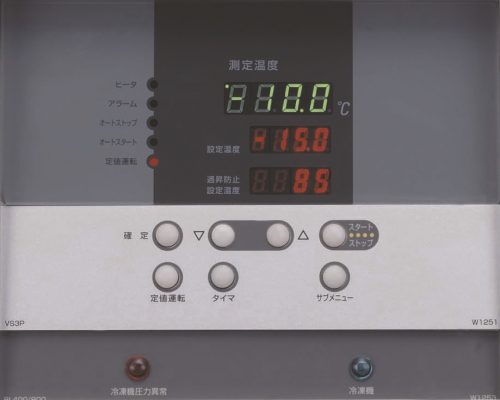

Temperature setting, display

attribute:Digital Setting and Display
Refrigerator, refrigerant

Air cooling 160W, R134A
Unit circulation ability(50/60Hz) Pump max. flow

Magnetic drive pump
Unit circulation ability(50/60Hz) Pump max. lift

Max. flow 3.7 / 4.7L/min, pump capacity 11 / 12L/min, Max. lift 1 / 1.5m, pump capacity 1.5 / 2.1m
Heater

700W

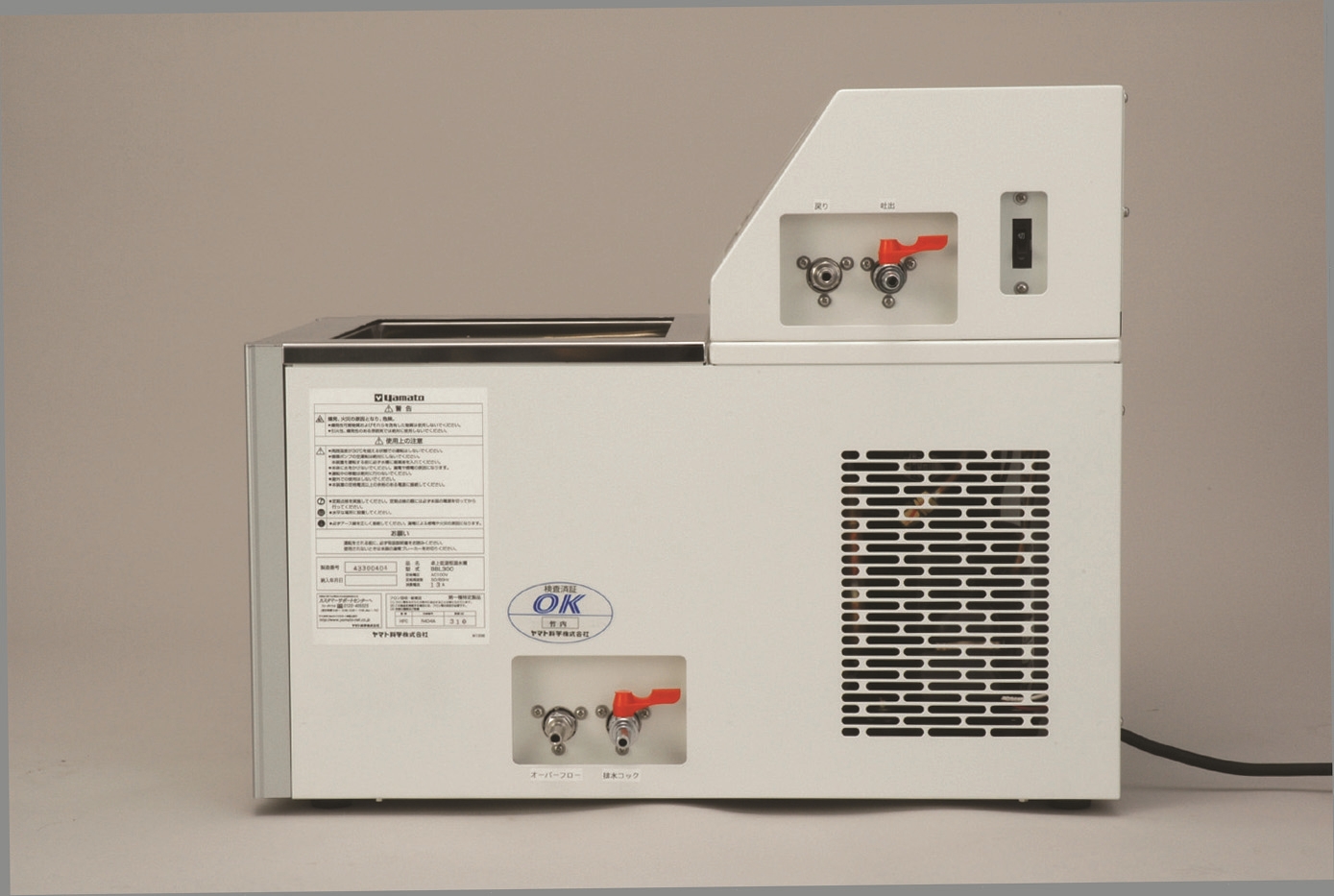

External circulation nozzle

O.D.10.5mm of water outlet and return port
Operating environmental temp. range

5~30°C
Safety device

Overcurrent ELB, Self-diagnosis, Refrigerator overload protector, Refrigerator delay timer of protection, Refrigerator pressure detection, Float switch preventing pump idling, Auto overheat protection, Overheat protector, Key lock, etc..
Other functions

Water valve, Condenser filter screen, Deviation correction, External communication (RS485), Refrigerator pressure indicator, Power outagecompensation, Temp. output terminal
Accessories

Bottom shelf plate, Lid, Drain hose, Overflow hose
Internal dimensions（W×D×H mm）

300×150×177.5mm
External dimensions（W×D×H mm）

500×530×500mm
Remarks(dimensions)

Bath capacity (effective)　8(6.75)L
Power Source

AC220V 5A
Single-phase with step down transformer
