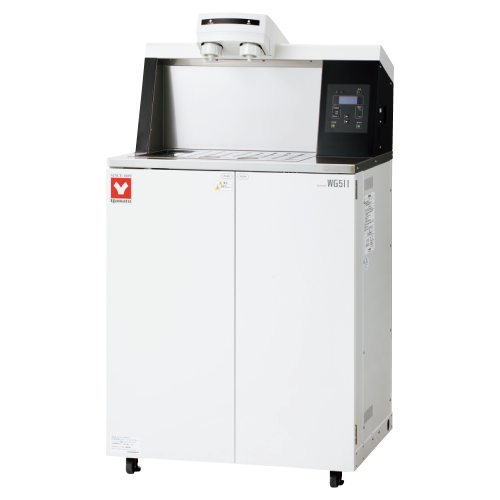

Water Purifier (Ion-exchange + Distillation, Large Capacity) (WG511)

Water Purifier (Ion-exchange + Distillation, Large Capacity) (WG511)

Description

High-capacity type to supply highly pure water with a single motion.

Features of Water Purifier (Ion-exchange + Distillation, Large Capacity) (WG511)

Features
The supplying water, Ion exchange water and Distilled water to the storage tank are automatically controled.
Features
For production of large amounts of distilled water and deionized water.
Features
Digital water quality display, Collection water with a single touch of button.
Features
It is easy to replace the ion-exchange resin cartridge.
Features
UV lamp for sterilization is available as the optional.

Additional information

Model

WG511

Item Code

253137

Weight

130kg

Water purifying method

Ion exchange→Distillation→Filtration

Water feeding

One-touch coupler connecting resin hose / free hose connecting

Water discharging

Left / right selection for connecting hose

Collection of distilled water

Approx. 1.0 to 2.0 L/min. (50Hz) 1.5 to 2.5 L/min. (60Hz)

Distilled water production

Approx. 5 L/hr.

Distilled water delivery rate

1.0 – 2.0 L/min (50Hz) 1.5 – 205 L/min (60Hz) *it depends on the amount of water in the tank

Deionized water delivery rate

Approx. 1.4 L/min

Range of production

0.1 – 85L quantitative water / Continuous production

Condenser

Hard glass

Heater

Ceramic heater, 2 pcs.

Pre-treatment cartridge

0.1μm diameter hollow fiber + Activated carbon

Ion-exchange resin cartridge

SPC-10 (approx. 10L of resin)

Distilled / deionized water filter

0.1μm×2 membrane filter

Leakage indication

Forced shutdown of solenoid valve by water leakage sensor

Distilled water tank capacity

100L polyethylene tank

Product water intake tray

Standard

Raw water pressure range

0.10MPa to 0.50MPa

Accessories

Water supply hose — 2m×1 pc. (with connecting unit), Pre-treatment cartridge, Ion-exchange resin cartridge, membrain filter 2pcs, Hose clamp 2pcs, elbow fittings, Drain hose assy 3m, Connecting hose assy

External dimensions(W×D×H mm)

800×685×1510mm

Power Source

AC220V 20A
Single-phase with step-down transformer
