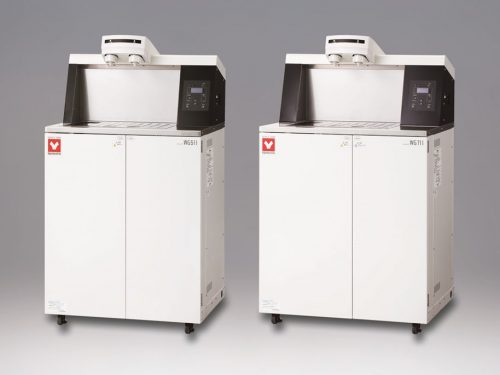

Water Purifier (Ion-exchange + Distillation, Large Capacity) (WG711)

Description

High-capacity type to supply highly pure water with a single motion.

Features of Water Purifier (Ion-exchange + Distillation, Large Capacity) (WG711)

Features: The supplying water, Ion exchange water and Distilled water to the storage tank are automatically controled.
Features: For production of large amounts of distilled water and deionized water.
Features: Digital water quality display, Collection water with a single touch of button.
Features: It is easy to replace the ion-exchange resin cartridge.
Features: UV lamp for sterilization is available as the optional.

Model	WG711
Heater	Ceramic heater, 4 pcs.
Weight	140kg
Water purifying method	Ion exchange→Distillation→Filtration
Water feeding	One-touch coupler connecting resin hose / free hose connecting
Water discharging	Left / right selection for connecting hose
Distilled water production	Approx. 10 L/hr.
Distilled water delivery rate	Approx. 1.0 to 2.0 L/min. (50Hz) 1.5 to 2.5 L/min. (60Hz)
Deionized water delivery rate	Approx. 2.8 L/min
Range of production	0.1 – 85L quantitative water / Continuous production
Condenser	Hard glass
Item Code	253138
Ion-exchange resin cartridge	SPC-10 (approx. 10L of resin)
Pre-treatment cartridge	0.1μm diameter hollow fiber + Activated carbon
Distilled / deionized water filter	0.1μｍ×2 membrane filter
Leakage indication	Forced shutdown of solenoid valve by water leakage sensor
Distilled water tank capacity	100L polyethylene tank
Product water intake tray	Standard
Raw water pressure range	0.15MPa to 0.50MPa
Accessories	Water supply hose — 2m×1 pc. (with connecting unit), Pre-treatment cartridge, Ion-exchange resin cartridge, membrain filter 2pcs, Hose clamp 2pcs, elbow fittings, Drain hose assy 3m, Connecting hose assy
External dimensions（W×D×H mm）	870×685×1510mm
Power Source	AC220V 40A Single-phase with step-down transformer
