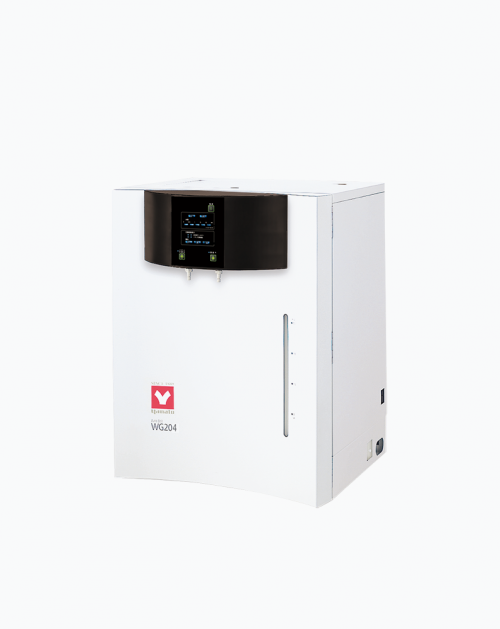

Water Purifier (Ion-exchange + Distillation) (WG204)

Description

Low cost high purity water purifier

Features of Water Purifier (Ion-exchange + Distillation) (WG204)

Features: Pre-treatment cartridge removes bacteria, trihalomethane, residual chlorine, organic and dust
Features: High performance ion-exchange resin cartridge (CPC-S, 4L) brings high purity water with low electric conductivity and TOC
Features: Optional membrane filter at water sampling port
Features: Displays replacement of consumables
Features: Feed / Drain water connectors on both sides

Model	WG204
Item Code	253154
Weight	48kg

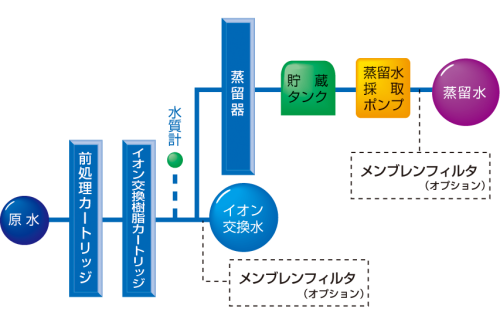

Water purifying method	Ion-exchange→Distillation
Water feeding	One-touch coupler water connection, with water stop valve
Water discharging	Left / right selection for connecting hose
Collection of distilled water	Deionized water / Distilled water
Distilled water production	Approx. 1.5L/h
Distilled water delivery rate	Approx. 1L/min
Deionized water delivery rate	Approx. 1L/min
Range of production	Continuous production
Condenser	Hard glass
Heater	Ceramic heater 1.2kW
Pre-treatment cartridge	0.1μm diameter hollow fiber + Activated carbon
Ion-exchange resin cartridge	CPC-S 4L×1pc. (Activated carbon high-purity cartridge)
Distilled / deionized water filter	Option
Leakage indication	Forced shutdown of solenoid valve by water leakage sensor
Distilled water tank capacity	20L polyethylene tank
Multi-purpose distilled water sampling port	Right side of main unit, 1pc.
Water level sensor	2 steps reed switch
Raw water pressure range	0.5 to 5×100kPa (0.5 to 5kgf/cm2)
Water level display	Communication pipe water level indication

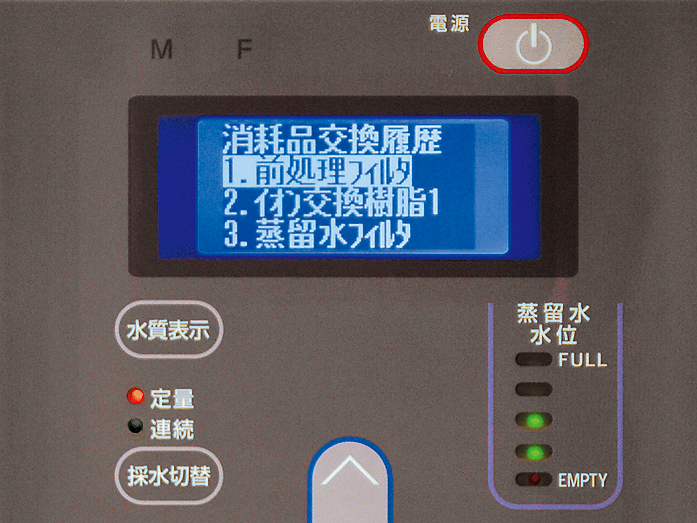

Water quality display	5 steps conductivity LED indication
Other display	Replacement of consumable parts (Ion-exchange resin cartridge)
Accessories	Feed /drain water hose 2m, Connecting hose assembly, Pre-treatment cartridge, Ion-exchange resin cartridge, Hose clamp
External dimensions（W×D×H mm）	600×575×780mm
Power Source	AC115V / AC220V Single-phase with step-down transformer
