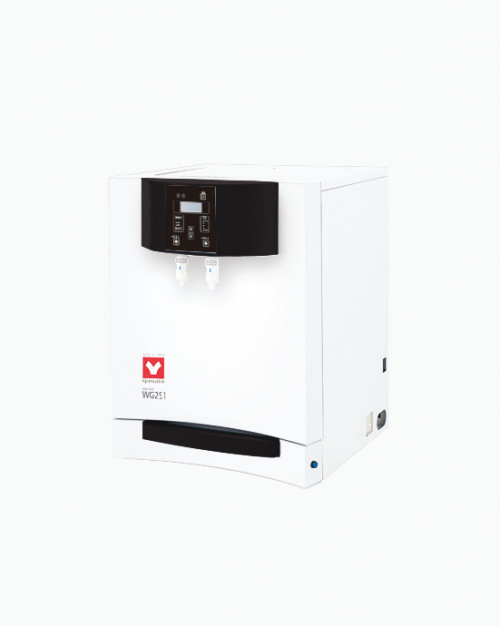

Water Purifier (Ion-exchange + Distillation) (WG251)

Description

Low TOC standard models

Features of Water Purifier (Ion-exchange + Distillation) (WG251)

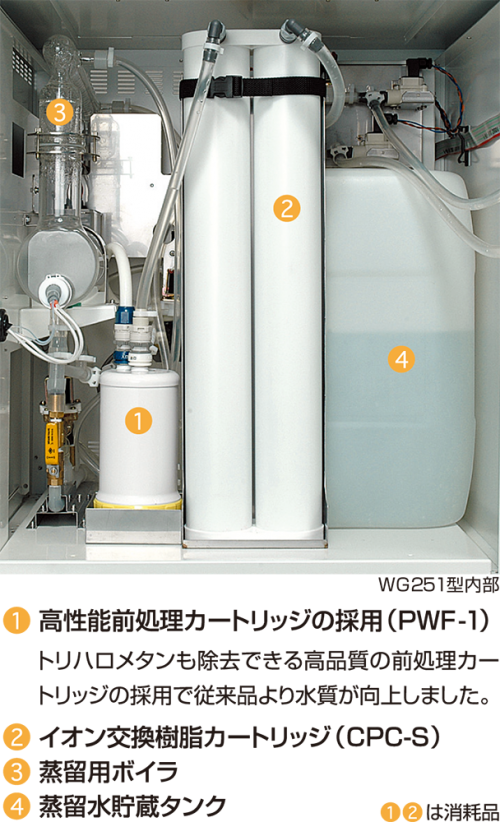

Low TOC standard models: Pre-treatment cartridge removes bacteria, trihalomethane, residual chlorine, organic and dust

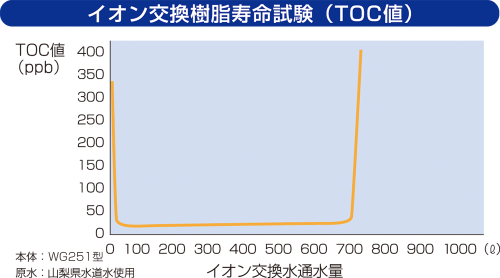

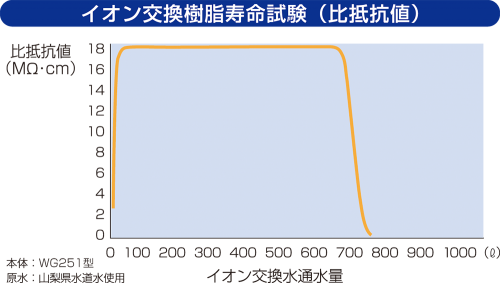

Features: High performance ion-exchange resin cartridge (CPC-S, 4L) achieves high purity water with low electric conductivity and TOC

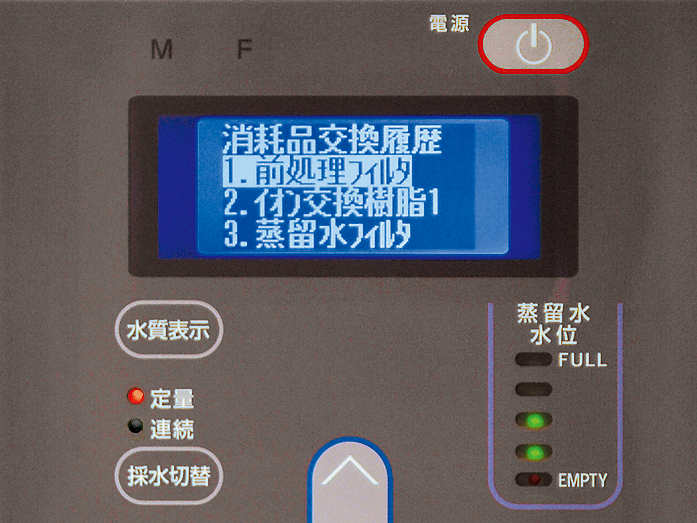

Features: Multi-functional control and display panel
Features: Standard equipped with membrane filter at water feeding port
Features: Large distilled water tank with capacity of　30L (WG250B) and 100L (WG1000)
Features: Easy to use slide out type water sampling tray with drainage eliminates concerns about overflowing water discharge

Additional information

Model	WG251
Ion-exchange resin cartridge	CPC-S 4L×1pc. (Activated carbon high-purity cartridge)
Weight	55kg

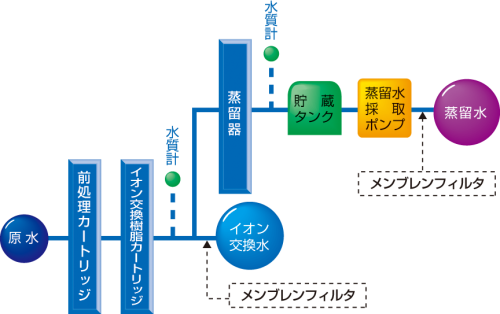

Water purifying method	Ion exchange→Distillation→Filtration
Water feeding	One-touch coupler connecting resin hose / free hose connecting
Water discharging	Left / right selection for connecting hose
Collection of distilled water	Deionized water / Distilled water
Distilled water production	Approx. 1.5L/h
Distilled water delivery rate	0.5 – 1L/min
Deionized water delivery rate	0.5 – 1L/min
Range of production	0.1 – 30L/ Continuous production
Condenser	Hard glass
Heater	Ceramic heater 1.2kW
Pre-treatment cartridge	0.1μm diameter hollow fiber + Activated carbon
Item Code	253152
Leakage indication	Forced shutdown of solenoid valve by water leakage sensor
Distilled / deionized water filter	0.1μｍ×2 membrane filter
Distilled water tank capacity	30L polyethylene tank
Product water intake tray	Drawer type, Load capacity 10 kg
Multi-purpose distilled water sampling port	Right side of main unit, 1pc.
Water level sensor	Reed switch, five level detection
Raw water pressure range	0.5 to 5×100kPa (0.5 to 5kgf/cm2)
Water level display	LED display
Water quality display	Digital (conductivity or resistivity)
Other display	Replacement of consumable parts (Ion-exchange resin cartridge, Pre-treatment cartridge, UV sterilizing lamp*2, membrane filter), Error indication/warning indication by character guidance, Consumables replacement history display,Error occurrence history display,Japanese / English display switching function,Maintenance indication
Accessories	Feed /drain water hose 2m, Connecting hose assembly, attribute:Pre-treatment cartridge, Ion-exchange resin cartridge, membrain filter, Hose clamp
External dimensions（W×D×H mm）	600×660×780mm
Power Source	AC115 V/AC 220V Single phase with step-down transformer
