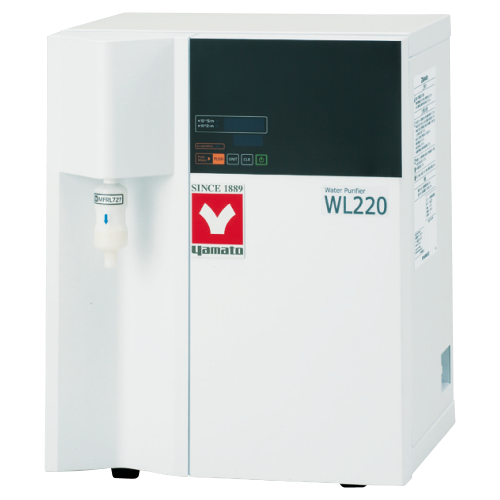

Water Purifier (Ion-exchange) (WL220)

Description

Economical, space saving benchtop water purifier which connects directly to tap water.

Features of Water Purifier (Ion-exchange) (WL220)

Features: Collecting deionized water is as simple as connecting to a faucet
Features: Benchtop, space-saving design
Features: Digital display for easy operation
Features: Deionized water compliant with ASTM D1193 Type 2 / JIS K 0557 A3 level, suitable for trace analysis
Features: Displays replacement of consumables
Features: Standard equipped with membrane filter (WL200/220)
Features: A solenoid valve at the water sampling port prevents water leakage from final membrane filter
Features

Model	WL220
Water leakage detection	Solenoid valve forced shutdown of water supply by detecting water leakage
Weight	16kg
Water purifying method	Ion-exchange (Controlled by key)
Raw water supply	One touch coupler water connection resin hose
Deionized water production	Approx. 1L/min. (Continuously produced)
Ion-exchange resin cartridge	2L ion-exchange resin with activated carbon (CPC-P) x 1pc. 2L ion-exchange resin (CPC-E) x 1pc.
Final filtration	0.1μm (Membrane filter)
Pure water tank	N/A
Item Code	253628
Sampling port	250mm above floor RC1/4 (Membrane filter connection)
Raw water pressure range	0.5 to 5x100kPa (0.5 to 5 kgf/cm2)
Safety device	Circuit breaker, Water leakage indicator, Pressure reducing valve, Water quality abnormal alarm
Water quality display	7 segments LED display (Conductivity / Resistivity)
Other display	Display of consumables replacement (CPC-P and CPC-E: Should be replaced simultaneously to prevent degradation of water quality, Membrane filter), Alarm display (Water leakage alarm)
Accessories	Raw water supply hose, Power cord (2m), Ion-exchange resin CPC-P+CPC-E (WL220/WL220T), Membrane filter (WL200/220),Seal tape
External dimensions（W×D×H mm）	350×350×450mm
Power Source	AC100 to 240V 0.2A Single-phase
