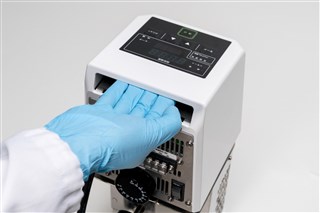

Immersion Constant Temperature Device (BF201)

Description

Multifucntional Constant Temperature Device

Features of Immersion Constant Temperature Device (BF201)

Product Features: Immersion Type Water Bath’s Temp. Controller.
Product Features: Various Functions from “Fixed Temp. Operation” to “Programmable Operation”.
Product Features: Data Output, External Communication, etc. are available as Option.
Product Features: Testing Bath BY100 (Polypropylene, for water) is included as standard.

Model	BF201
Temp. Display	Digital Display by Green LED　Min. Digit Indication: 0.1deg.C　Setting Temp./ Measured Temp. Changeable
Weight	4kg
Temp. setting range	-20.0 to 90deg.C
Operating temp. range	Room Temp. +5 to 80deg.C
Temp. control Accuracy	±0.05/0.1deg.C(at37/80deg.C)
Stirrer	Propeller Stirring
Heater	Stainless Pipe Heater　1.0KW
Temp. control System	PID Control by Micro Computer
Temp. setting	Digital Setting by Key
Item Code	221808
Additional function	Temp. Pre-setting(Memory/Recall 10 Temp.)
Operating Function	Fixed Operation
Heater Circuit Control	Triac Zero-cross Type
Sensor	Platinum resistance temperature detector (Pt100Ω)
Safety Countermeasure	Shelf Diagnosis Function (Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater, Triac, Relay), Circuit Protector, Float Type Empty Boiling Preventor, Independent Overheat Prevention Device
Clamp Available Thickness	Max. 35mm
Accessories	Testing Bath Model BY100 (Polypropylene)
External dimensions（W×D×H mm）	140×138×312mm
Power Source	AC220V 5A Single-phase with step down transformer
