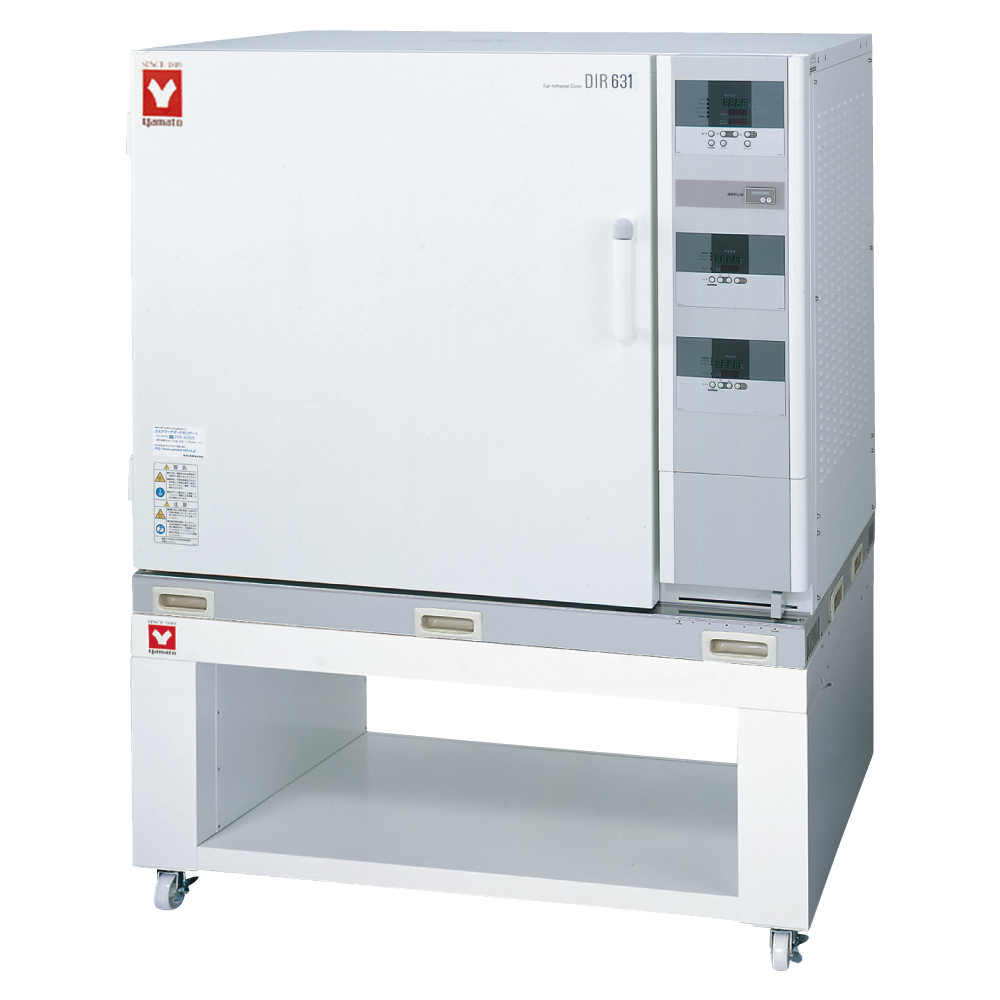

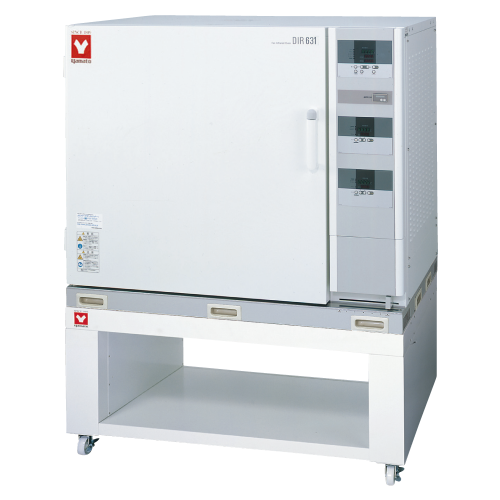

IR Oven (Far-infrared Heating) (DIR631)

Description

Making use of features of far infrared ray heater (IR heater), used for heat treatment of polymer materials.

Features of IR Oven (Far-infrared Heating) (DIR631)

Far infrared ray heater (IR heater) oven: The max. working temp. is 360°C.
Features: Easy operation, available for fixed temp., quick auto stop, auto stop and auto start operations.

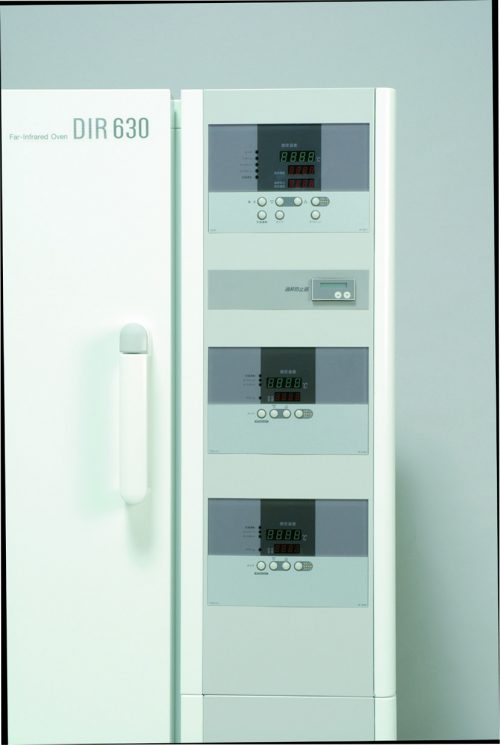

Features: Use specialized function menu key to set.
Features: Use submenu key to operate overheat protector, caribration offset and key lock.
Features: Allows quick exhaust and cooling in the unit with the exhaust damper.
Safety: Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc.

Additional information

Model	DIR631
Other Additional Function	Exhaust damper (manual)
Remarks (weight)	Approx. 250 kg (with stand)
Item Code	212430
Method	IR radiation+Forced convection circulation and ventilation
Operating Temperature Range	Room temp. +10 to 360°C
Temp. fluctuation	2.0°C (at 360°C, when IR Heater is OFF)
Temp. Gradient	12°C (at 360°C, when IR Heater is OFF)
Max. temp. reaching time	100 min (to 360°C, when IR Heater is OFF)
Heater	Stainless pipe heater with fin, 3.75kW
IR Heater	0.2kW×16pcs×2 sides of the top and the bottom, 6.4kW in total
Fan type / Motor	Axial fan / Condenser motor 20W
Sensor	Double K thermocouples×1 (for unit body temp. controller and overheat protector)
Sensor 2	K thermocouple×2 (for IR heater which is built in the center)
Cable port	I.D. 30mm (at back)
Additional mechanism	Exhaust damper (manual)
Control Method	PID control
Operation functions	Fixed temp., Quick auto stop, Auto stop and auto start operation
Additional functions	Calibration offfset, Key lock, power outage compensation, Door open&close detection
ELB	Electric leakage, Short circuit, Overcurrent protection
Overheat protector	Auto cut off the heater circuit when overheating
Self-diagnosis functions	Abnormal temp. sensing, Heater disconnection, Auto overheat prevention, SSR short circuit
Effective dimensions (W×D×H)	600×600×200mm
External dimensions (W×D×H)	1,200×780×1,790mm (with stand)

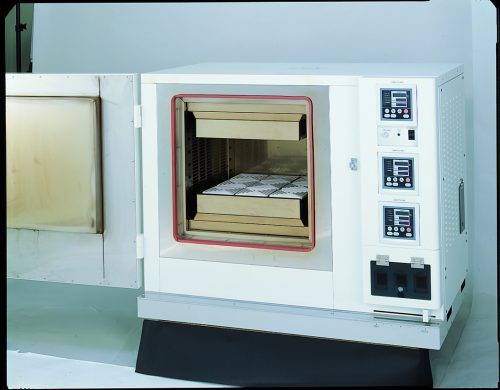

Shelf plate	Stainless steel wire shelf
Shelf plate quantity	1 pc
Shelf bracket	2 pcs.
Internal dimensions（W×D×H mm）	600×600×600mm
External dimensions（W×D×H mm）	1200×780×1000mm
Remarks(dimensions)	216L (Space between IR heaters are 200mm)
Power Source	AC380V 18A Three-phase
Weight	230kg
